AUX activator for BMW CCC
Plenty of E60 and E63 cars left the factory with the AUX pins in the harness but no AUX line in the Entertainment menu, so a phone plugged into the socket plays nothing. This module activates that missing source in one pass — no coding laptop, no dealer visit, no software update. One unit activates one vehicle.
Vehicle system: BMW CCC — E60 / E61 / E63 / E64
CCC is the first iDrive head unit, fitted across the E60 / E61 5 Series and the E63 / E64 6 Series. The connector on the back of the unit carries left, right and ground for an auxiliary input, and on many cars those pins are wired — what is missing is the software switch that makes the source appear in the menu. The car looks like it has no AUX at all: no line in Entertainment, and the 3.5 mm socket, if there is one, does nothing.
This module writes that switch once, from outside the head unit. Plug it in, press and hold, wait for the AUX line to appear in the Entertainment list, then shut the car down in the right order and the setting is stored in the car. From then on the vehicle has a working factory AUX source and the module goes back in its box — it is a tool, not a permanent part of the install.
Who buys it
- Importers and distributors — a low-value add-on that solves a question every CCC owner asks.
- Workshops doing CCC interface work — the same screen is already off the dashboard when you fit a CarPlay interface, so the AUX activation adds a few minutes to a job you are doing anyway.
- BMW specialists and breakers — unlocking head units that came from a car where AUX was never enabled.
It is not a Bluetooth receiver, not a streaming box and not a CarPlay solution. If the car needs phone integration with a screen, that is the CCC CarPlay interface — and the two work side by side on the same car.
At a glance
- Activates the factory AUX audio source on BMW CCC head units
- E60 / E61 5 Series and E63 / E64 6 Series
- Single pass — hold one button, watch for the AUX line
- No coding laptop, no software update, no dealer visit
- Can be run in the car or on the bench with the unit out
- Supplied with the AUX port lead for cars with no 3.5 mm socket
- English instruction sheet in the box, and a PDF you can forward
- One activator per vehicle — order by car count
| Vehicle system | BMW CCC head unit — E60 / E61 (5 Series), E63 / E64 (6 Series), 2004-2010 (CCC head unit) |
| Function | Activates the factory AUX audio source so it appears in the Entertainment menu |
| Coverage | One activator activates one vehicle — the code is single-use |

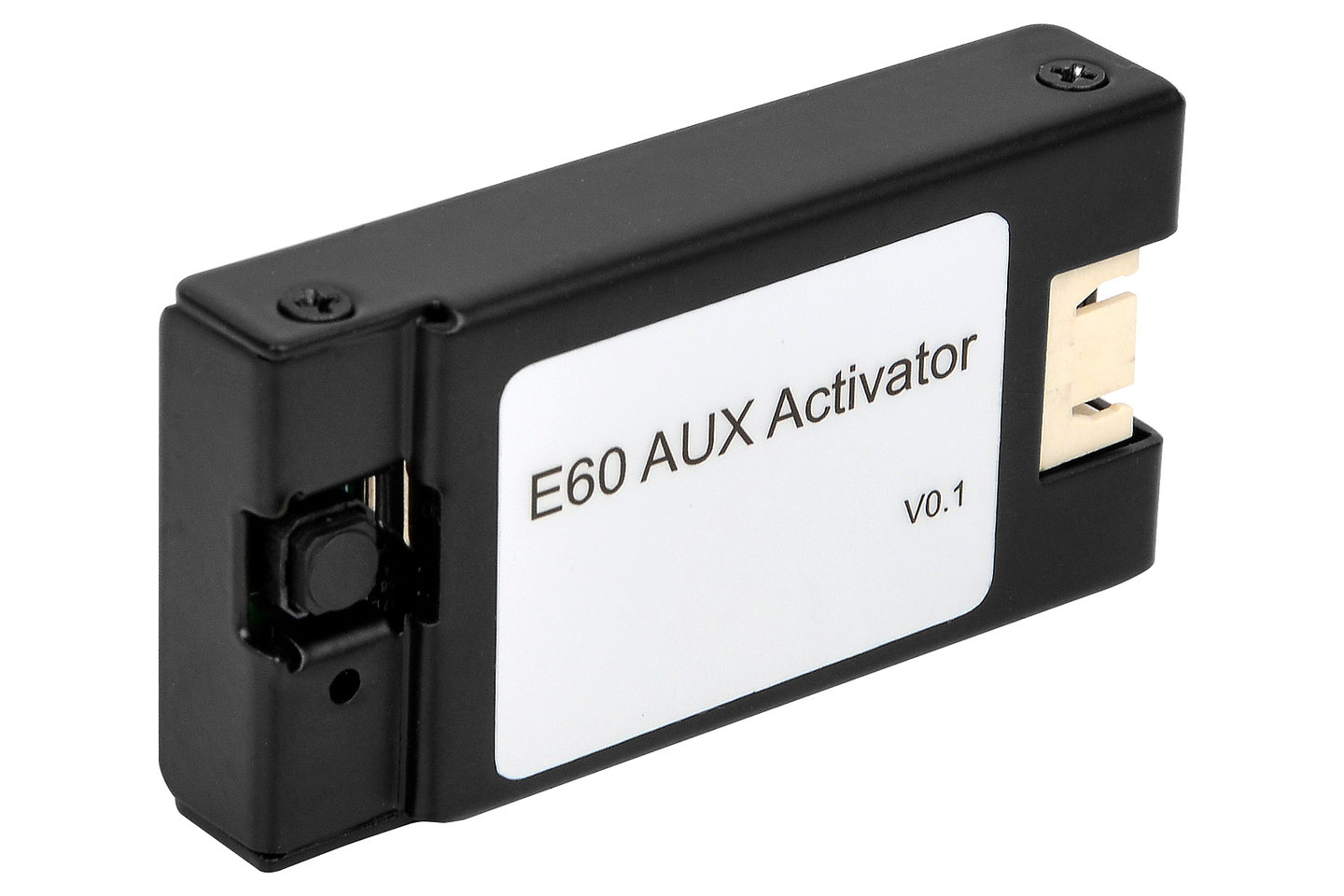

| Method | Plugs into the factory head unit connector; press and hold one button on the module |

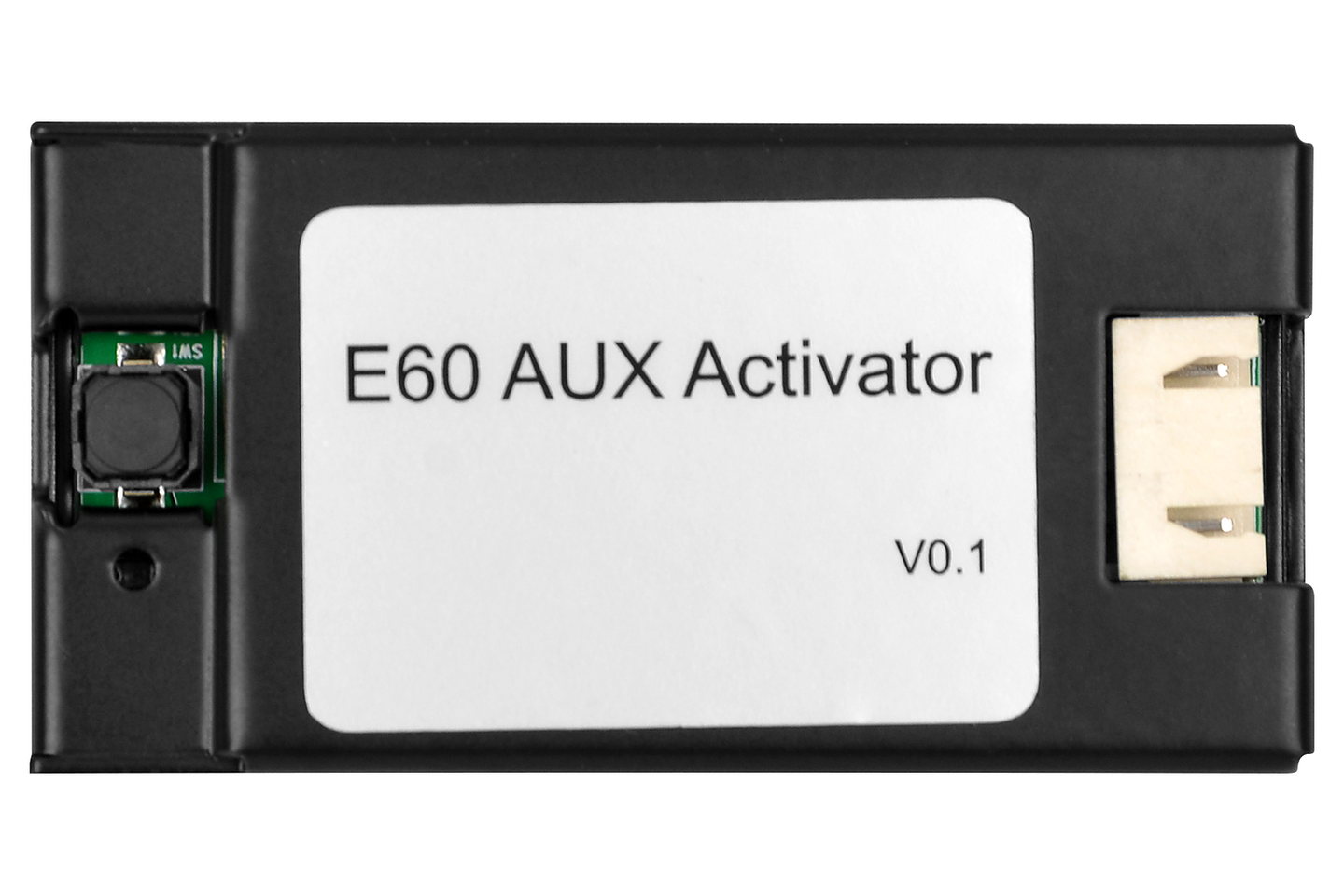

| Indicator | LED on the module — off means the code is available, on or flashing means it is not being accepted |
| Coding required | None. No laptop, no diagnostic session, no software update |
| AUX port | If the car has no 3.5 mm socket, three AUX wires go into the factory harness and the supplied port lead provides the jack |

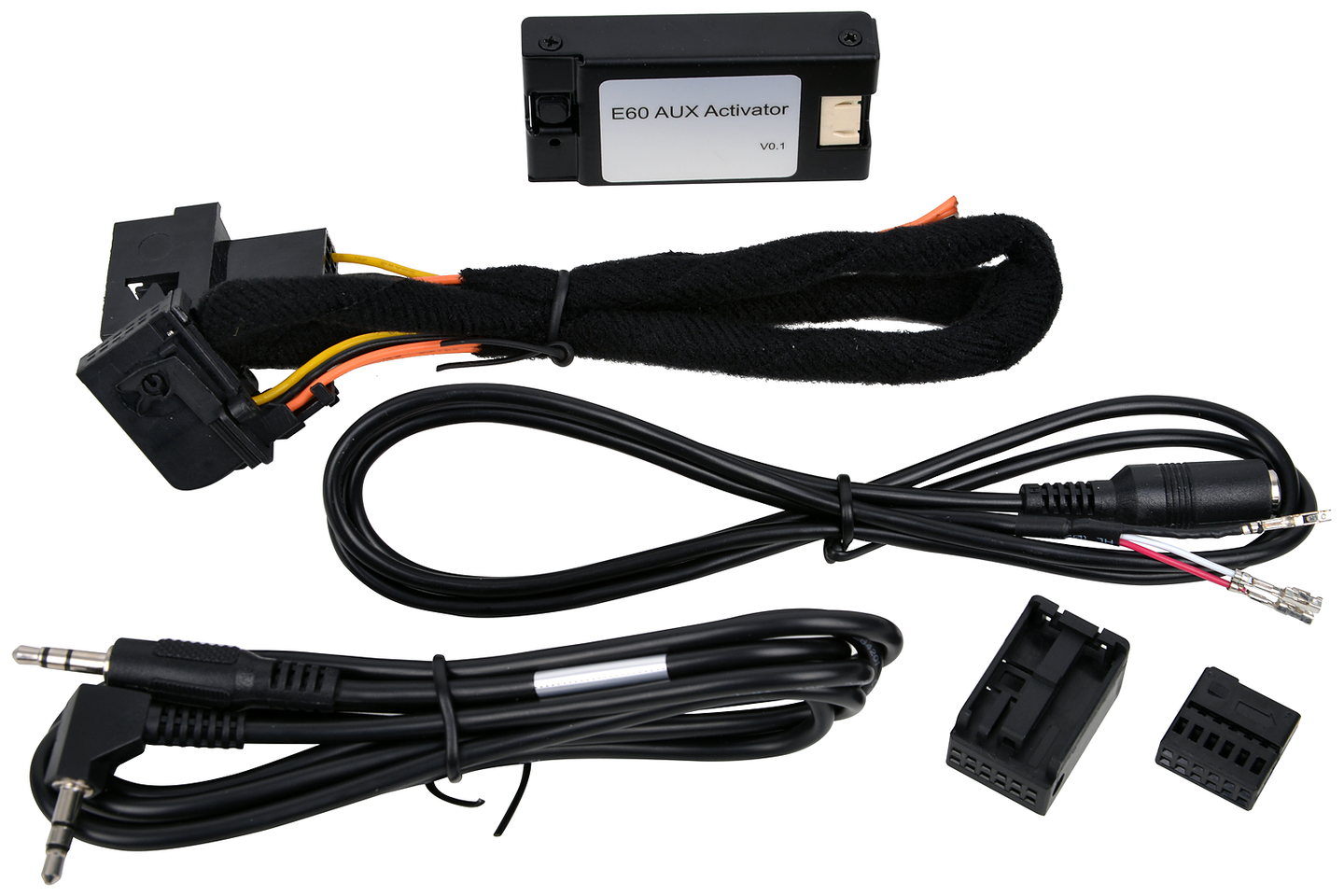

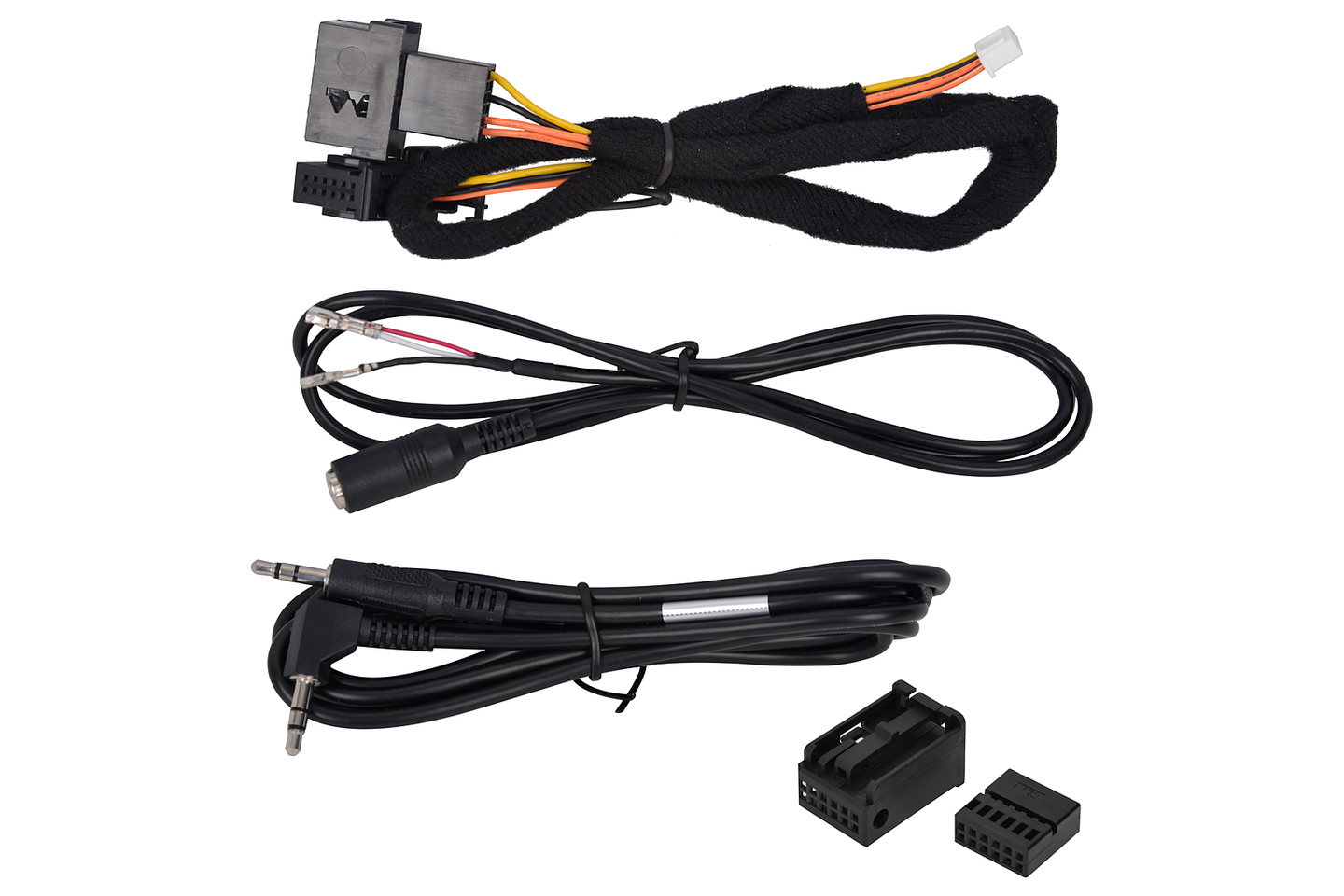

| Kit contents | Activator module · plug-and-play harness · 3.5 mm AUX lead · AUX port lead · connector housings · English instruction sheet |
| Returns | Not accepted once shipped — the activation cannot be put back in the box |
| Support | Video-call walkthrough with our technician if a step does not behave |
Minimum order is 3 units and lead time is 3 working days. Packing and payment terms are the same as the rest of the range — see trade terms. Pricing is quoted per order, by quantity.
What arrives
One box per vehicle. Nothing else is needed — no adapter to buy separately, no software to download.
Eight steps, one pass
The order matters more than the speed. Do not connect anything with the ignition on, and do not restart the car before the P-gear light has gone out — that is the step people skip, and it is the step that wastes the unit.
Power off, screen out
Ignition off. Remove the two screws above the screen, pry the trim loose and take the factory monitor out.
Seat the harness
Unplug the head unit and seat the activator harness fully — you should feel the connector click. A half-seated plug reads as a failed activation.
Check the LED first
Start the car, open Entertainment, then look at the module. The LED must be off. On or flashing means the code is not being accepted — stop here.
Hold until AUX appears
Press and hold the button. When the LED comes on and the AUX line appears in the Entertainment list, release.
Keep it connected, wait 5 s
Leave the module plugged in and wait five seconds. Pulling the plug here is the second way to lose an activation.
Shut down and lock
Switch the engine off and lock the car. Wait for the P-gear indicator light to go out before touching anything.
Restart and confirm
Start the car again. If AUX Audio is still listed in Entertainment, the activation is stored in the car.
Test, then refit
Play something through the 3.5 mm lead before you put the trim back. Once audio is confirmed, refit the screen and the two screws.
Download the full illustrated sheet before you start: BMW CCC AUX activator installation guide (PDF, 12 steps). It is the same sheet that ships in the box, so you can forward it to an installer.
Adding the 3.5 mm port
Plenty of E60 cars were ordered without the AUX socket, so there is nowhere to plug the phone even after the menu entry exists. The port lead in the kit fixes that.
Open the console
Pry out the air-conditioning trim strip, remove the panel screws and take out the storage box panel.
Release the head unit
Remove the screws holding the head unit so you can reach the harness behind it.
Wire the three AUX pins
Take out the original harness and plug the three AUX wires into it in the positions shown in the guide — left, right and ground.
Fit the jack and test
Route the port lead to the console, fit the socket, plug in a phone and play. If audio comes out, the job is done.
Compatibility
Covered by head unit, not by model year.
| Model | Chassis and years |
|---|---|
| 5 Series | E60 / E61 — 2004-2010, CCC head unit |
| 6 Series | E63 / E64 — 2004-2010, CCC head unit |
The later CIC unit looks different on screen and is not covered by this activator. Send a photo of the main menu and we will confirm before you buy — a wrong unit is a wasted activation, not just a return.
AUX activator questions
The things importers and installers ask us most about this one.
